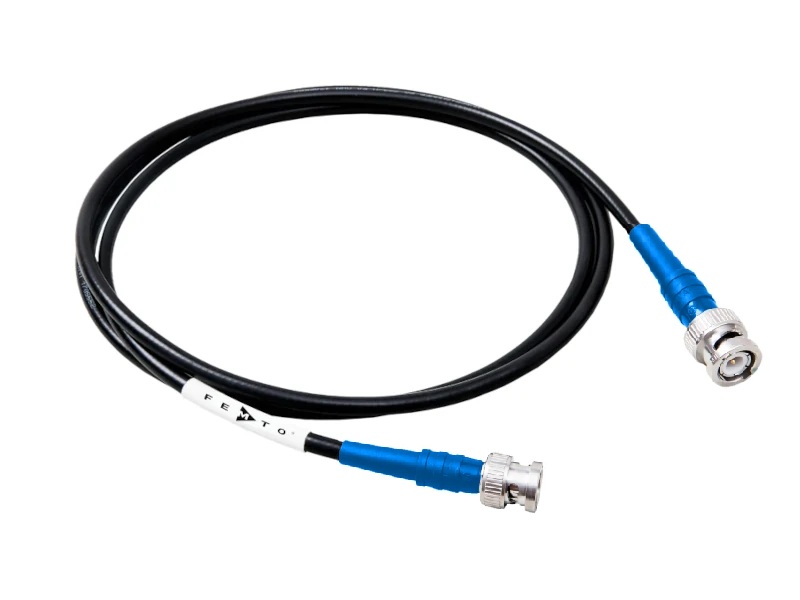

Features
- Double shielded coaxial design
- 100% verified RF parameters
- Pre-assembled with high-quality BNC connectors
- Available in various lengths from 20 cm to 3 m
- Additional lengths are possible (min. order quantity 10 pieces)
Advantages
- High shield attenuation against electromagnetic interferences (> 85 dB)
- Low shielding and contact resistance minimises grounding problems
- Suitable for frequencies up to 4 GHz
| Length | Plug BNC – BNC |
|---|---|
| 0.2 m | CAB-HF1-BB-020 |
| 0.5 m | CAB-HF1-BB-050 |
| 0.8 m | CAB-HF1-BB-080 |
| 1.5 m | CAB-HF1-BB-150 |
| 3.0 m | CAB-HF1-BB-300 |
| Datasheet |  |
Double shielded cables for maximum signal integrity at amplifier input and output
The excellent shield attenuation of more than 85 dB allows the precise measurement of small signals, even in a very "harsh" electromagnetic environment. The extremely low shielding and contact resistance reduces signal distortions caused by currents flowing to ground (ground loops), which often cannot be avoided in the measurement setup and frequently cause problems.
Return and insertion loss - 100% tested for each individual cable
The guaranteed high-frequency characteristics of the cables of the CAB-HF1 series are verified by measuring the return loss (RL) and the insertion loss (IL) on each individual cable.
Applications
Sensitive measurements of small signals from DC to the GHz range, even with high EMI load or unfavourable grounding situation.
- Runtime measurements (LIDAR, radar, SODAR...)
- High-frequency spectroscopy and tomography (NMR, MRT, ESR ...)
- Impedance spectroscopy
- Fast scanning microscopy (AFM, STM, Raman ...)
- Modulation spectroscopy
Comparison of FEMTO coaxial cables
Low Noise Coaxial Cable CAB-LN1
- Insensitive against disturbances caused by triboelectric and microphonic effects
- Frequency range: DC to 1 MHz
- Suitable for input of amplifiers, especially for the analysis of extremely small currents in the fA to nA range at rather small frequencies
- Recommended for input of DDPCA-300, DLPCA-200, LCA series and HQA-15M-10T
High Performance RF Coaxial Cable CAB-HF1
- Insensitive against electromagnetic interferences (EMI) and currents to ground (ground loops)
- Frequency range: DC - 4 GHz
- Suitable for input and output of amplifiers for the analysis of small signals at rather high frequencies
- Recommended for input of DHPCA-100 and HLVA-100 as well as HCA, DHPVA, HVA and LIA series
- Recommended for outputs of all FEMTO amplifiers and photodetectors with BNC connections
